Description
PROMASTOP® UniCollar® is currently tested with many new and existing types of plastic using uPVC as a benchmark.

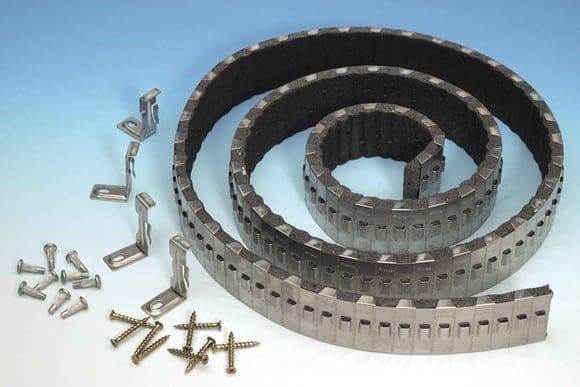

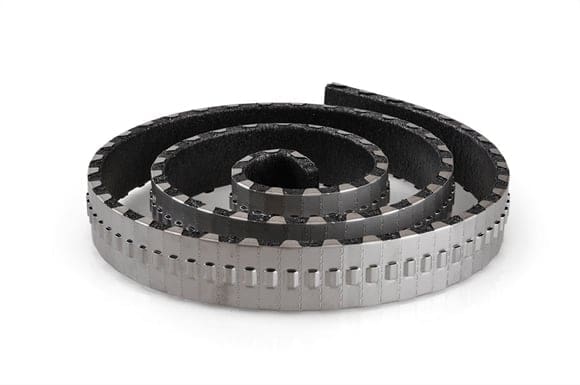

PROMASTOP® Unicollar® is packed in individual boxes each containing 2250mm length of collar (or 150 segments) and fixing accessories are included. The collar is designed so that it can be cut and snapped in modules of 15mm. For a guide to the approximate number of collar sizes per strip, please refer to the usage guide table.
USAGE GUIDE

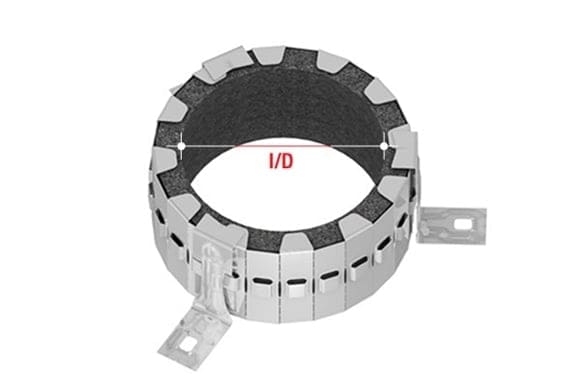

| Inside diameter (I/D) | mm | 43 | 50 | 55 | 63 | 69 | 75 | 83 | 90 | 110 | 114 | 125 | 140 | 160 | 200** |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inches | 1.25 | 1.5 | – | 2 | – | 2.5 | – | 3 | – | 4 | – | 5 | 6 | – | |
| Segments per collar (UL listing if featured) |
15 | 17 | 18 | 20 (19) |
21 | 22 | 24 | 25 | 29 | 30 | 33 | 36 | 40 (42) |
49 | |
| Approximate number of collars per box | 10 | 8.5 | 8 | 7.5 | 7 | 6.5 | 6 | 6 | 5 | 5 | 4.5 | 4 | 3.5 (3.75) |
3 | |
| Number of brackets per collar for floor application | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 4 | 5 | 5 | 5 | |
| Number of brackets per collar for wall application | 2* | 2* | 2* | 2* | 2* | 3 | 3 | 3 | 3 | 3 | 3 | 5 | 5 | 5 | |
These figures based on uPVC and HDPE pipes. Contact Promat for other pipe types
*Three brackets are recommended for framed walls if framing is not available to be fixed on.
**200mm only approved for HDPE Pipes
PROMASTOP® UniCollar® are manufactured under a quality management system certified in accordance with ISO 9001: 2008. The production unit has passed the site audit of ISO 14001 and all manufacturing processes are in accordance with the environmental standards of ISO 14001: 2004 and the safety standards of AS 4801: 2001.
Installation – Slabs
Installation – Walls
