Description
- Promat MultiSeal® Cast-in Collar is available in THREE (3) sizes:
-
- Small, for services up to nominal 75mm diameter;
- Medium, for services up to nominal 120mm diameter; and
- Large, for services up to nominal 170mm diameter.

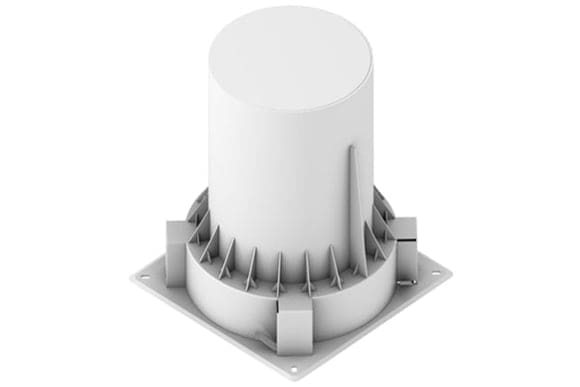

Promat MultiSeal® Cast-in collars are designed to provide openings in cast slabs. The product will not provide a seal in the event of a fire and has no fire resistance level classification.

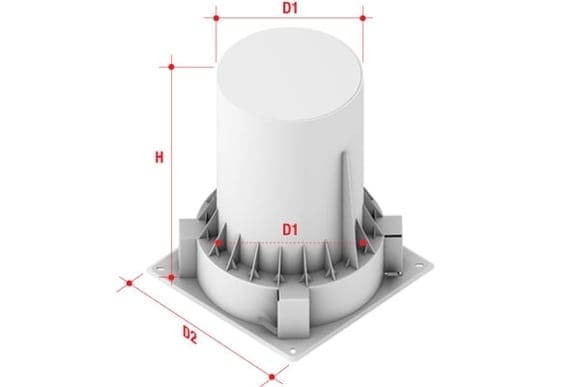

DIMENSION
| Code no. | MSS | MSM | MSL | ||
|---|---|---|---|---|---|
| Maximum diameter of services | mm | 75* | 120* | 170 | |
| Body | H | mm | 250 | 250 | 250 |
| D1 | mm | 95 | 140 | 190 | |
| Flange | D2 | mm | 155 | 198 | 253 |
* Allowance of 10mm for backfill around services
Promat MultiSeal® Cast-in Collars are manufactured under a quality management system certified in accordance with ISO 9001: 2008. The production unit has passed the site audit of ISO 14001 and all manufacturing processes are in accordance with the environmental standards of ISO 14001: 2004 and the safety standards of AS 4801: 2001.
